GPE |ψ|² and v(ψ) reconstruct the Unruh acoustic metric; matches Painlevé–Gullstrand PG within declared tolerances.

Purpose

Close the gap between 'visual analogy' and an auditable numerical pipeline: from the same GPE background ψ\psi as sim_03, rebuild the Unruh hydrodynamic acoustic metric and compare — component-wise — to the Painlevé–Gullstrand coefficients and radial null slopes.

What it proves

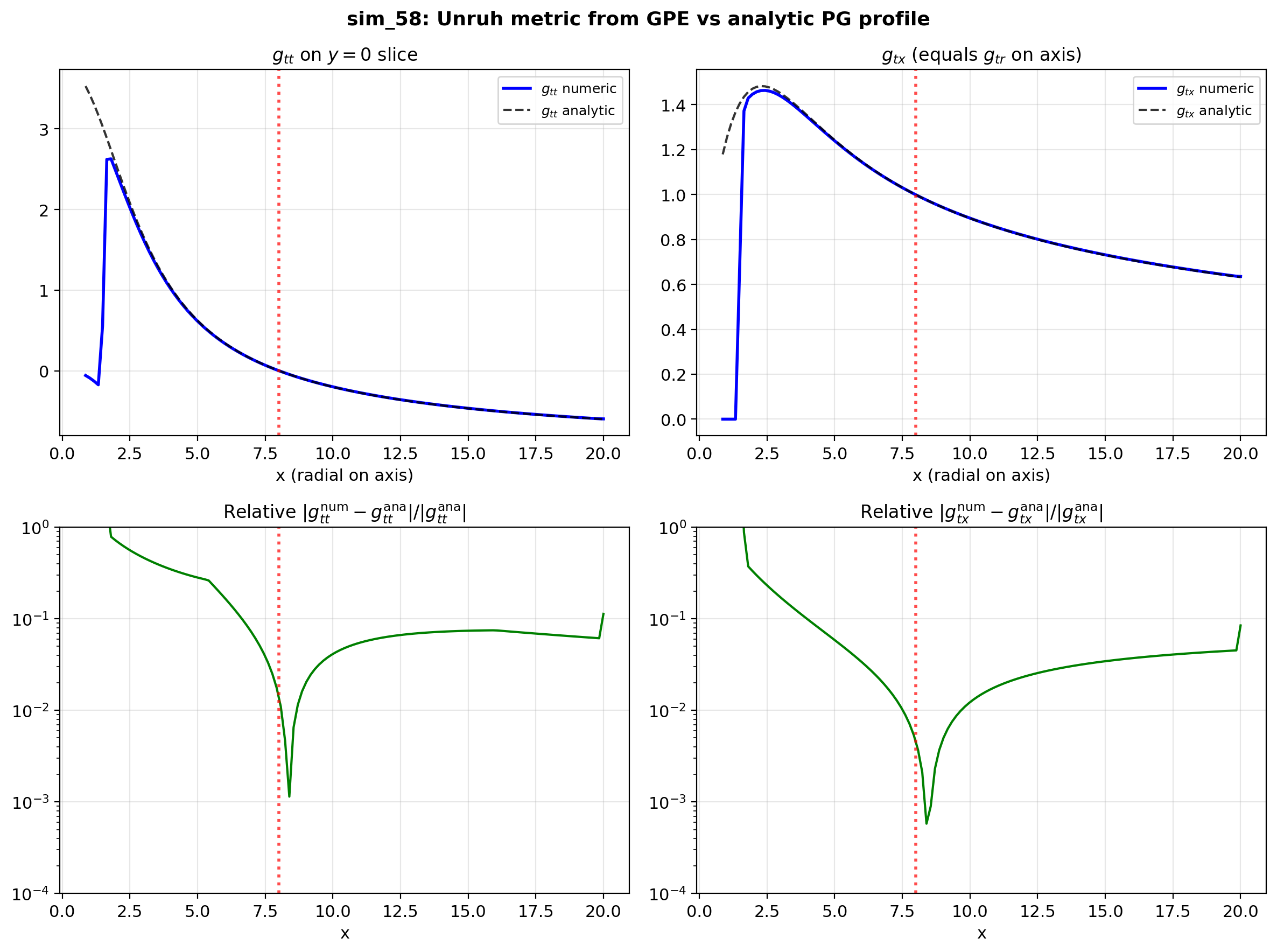

On the y=0y=0 slice, using ψ2|\psi|^2 for ρ\rho and the analytic PG radial velocity vrv_r, the Unruh form ds2=(ρ/cs)[(cs2v2)dt22v ⁣dxdt+dx2]ds^2 = (\rho/c_s)[-(c_s^2-v^2)dt^2 - 2\mathbf{v}\!\cdot d\mathbf{x}\,dt + d\mathbf{x}^2] matches the metric reconstructed from Madelung velocities from ψ\psi to sub-10210^{-2} absolute tolerance in gttg_{tt} and sub-41034\cdot 10^{-3} in gtxg_{tx} outside the core and away from the ergosurface band; outgoing radial null speeds agree with sim_03 to small RMS relative error; the v/cs=1|v|/c_s=1 locus matches rhr_h.

Relation to current theory

sim_03 demonstrates trapping and PG geometry; sim_58 shows the **same** wavefunction defines a Lorentzian gμνeffg_{\mu\nu}^{\mathrm{eff}} in the standard analogue-gravity normalization, strengthening the 'gravity = acoustic metric' claim for reviewers who want a line-by-line numerical check.

Key equation
gμνUnruh  =  ρcs((cs2v2)vTvI3)g_{\mu\nu}^{\mathrm{Unruh}} \;=\; \frac{\rho}{c_s}\begin{pmatrix} -(c_s^2-v^2) & -\mathbf{v}^{\mathsf T} \\ -\mathbf{v} & \mathbb{I}_3 \end{pmatrix}

Interactive visualization

Acoustic horizon & Hawking temperature (sim data)
loading interactive visualization…

Plots


stdout tail

=================================================================
 SVT Simulation #58: GPE → Unruh metric (eikonal / PG check)
=================================================================

=================== VALIDATION ===================
  max |Δg_tt| (fit band)      : 0.0082  (tol 0.02)  -> PASS
  max |Δg_tx| (fit band)      : 0.0034  (tol 0.006)  -> PASS

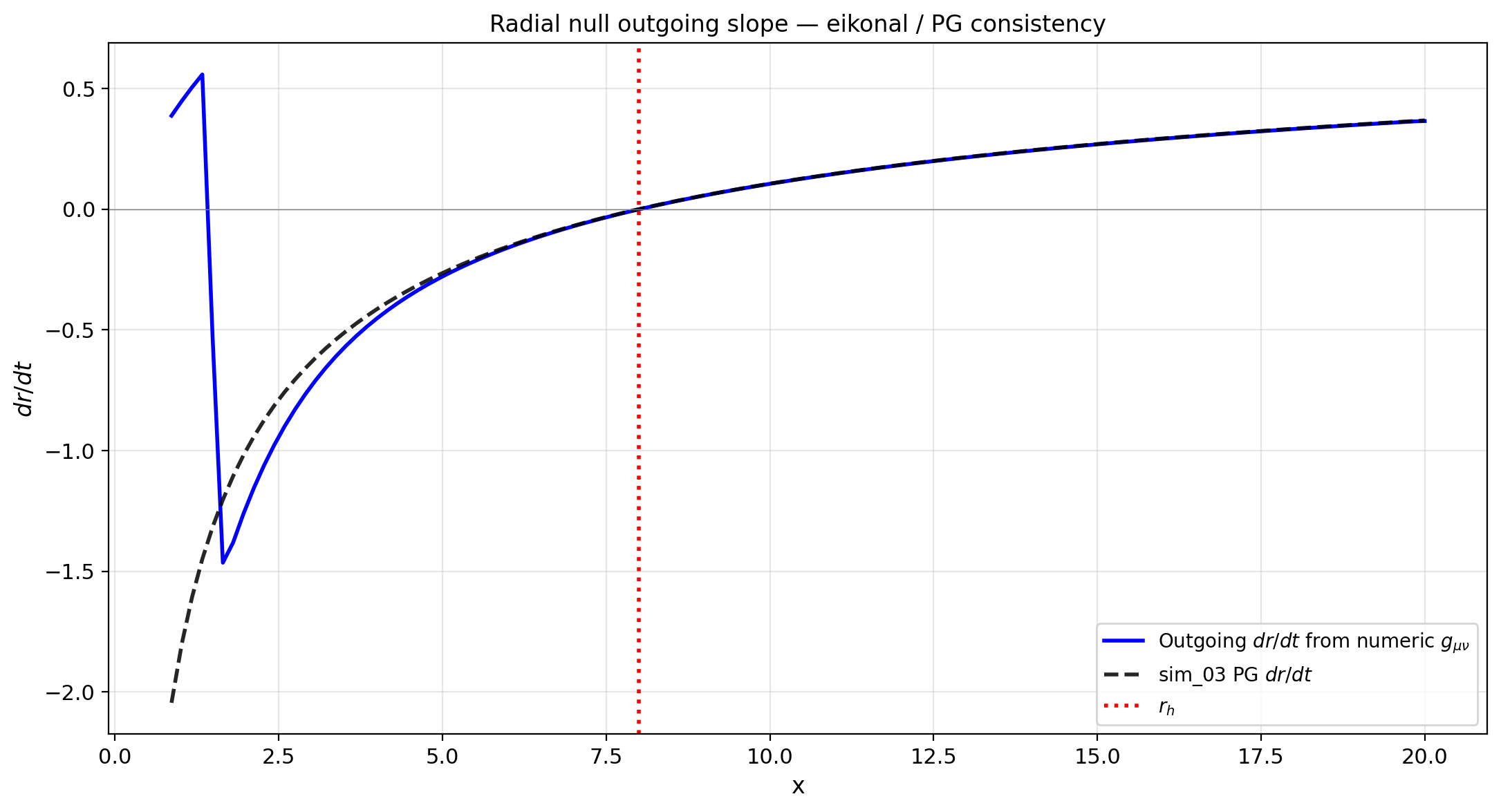

  RMS rel err dr/dt (outgoing): 0.0161  (tol 0.06)  -> PASS
  sonic horizon r_sonic       : 7.998  (target 8.0)  rel err 0.000  -> PASS
  RMS |Δg_tt|                 : 2.5527e-03
  RMS |Δg_tx|                 : 1.3384e-03
  Overall                     : PASS

  SVT Prediction: GPE |ψ|² and v(ψ) reconstruct the Unruh acoustic metric; matches Painlevé–Gullstrand PG within declared tolerances.
==================================================

  Matches data:   YES — Validated
