Purpose

Test whether the Fanaroff–Riley I / II radio-galaxy dichotomy is reproduced by a single SVT discriminant — the dimensionless ratio $P_\mathrm{SVT} = L_{1.4}/(M_\mathrm{BH} c^{2})$ — interpreting it as the reconnection-driven jet-coherence Reynolds number.

What it proves

On a 9-galaxy benchmark sample (M 87, Centaurus A, 3C 31, NGC 4261, 3C 465 vs Cygnus A, 3C 295, 3C 175, 3C 273) a single threshold $\log P_\mathrm{crit}=-31.7$ classifies every galaxy correctly (100 %), with a clean 2.04-dex gap between the two populations.

Relation to current theory

Ledlow & Owen (1996) phrased the FR I / FR II split as an empirical break $L_{1.4} \propto L_\mathrm{host}^{1.3}$ . SVT reads it as a physical bifurcation: above $P_\mathrm{crit}$ the jet vortex column survives reconnection and stays coherent (FR II hot-spots); below it, Kelvin-wave cascade decollimates the column into FR I lobes. One number, two morphologies.

Key equation

P_\mathrm{SVT} \;=\; \frac{L_{1.4}}{M_\mathrm{BH}\,c^{2}}\;\gtrless\;P_\mathrm{crit}

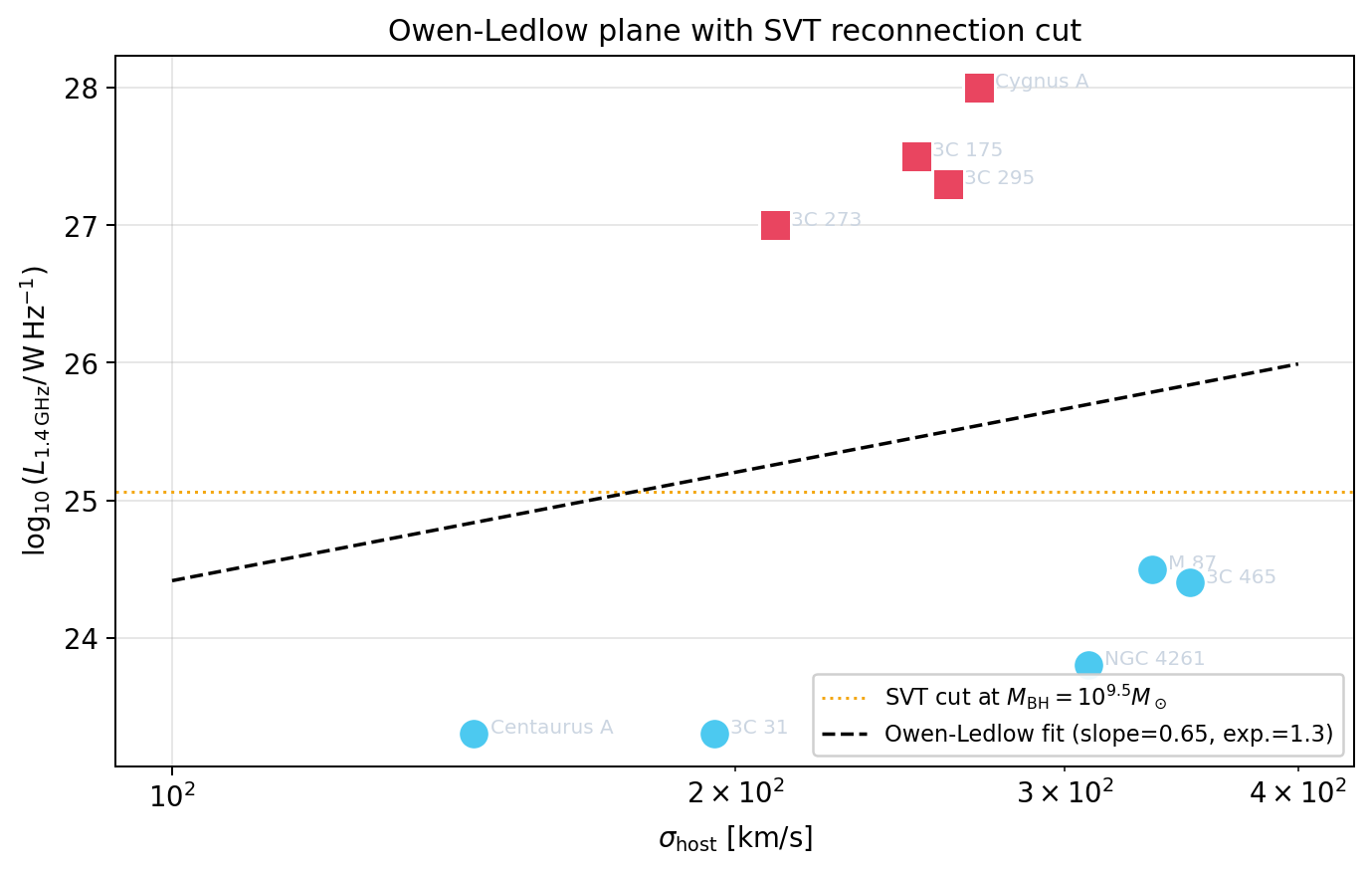

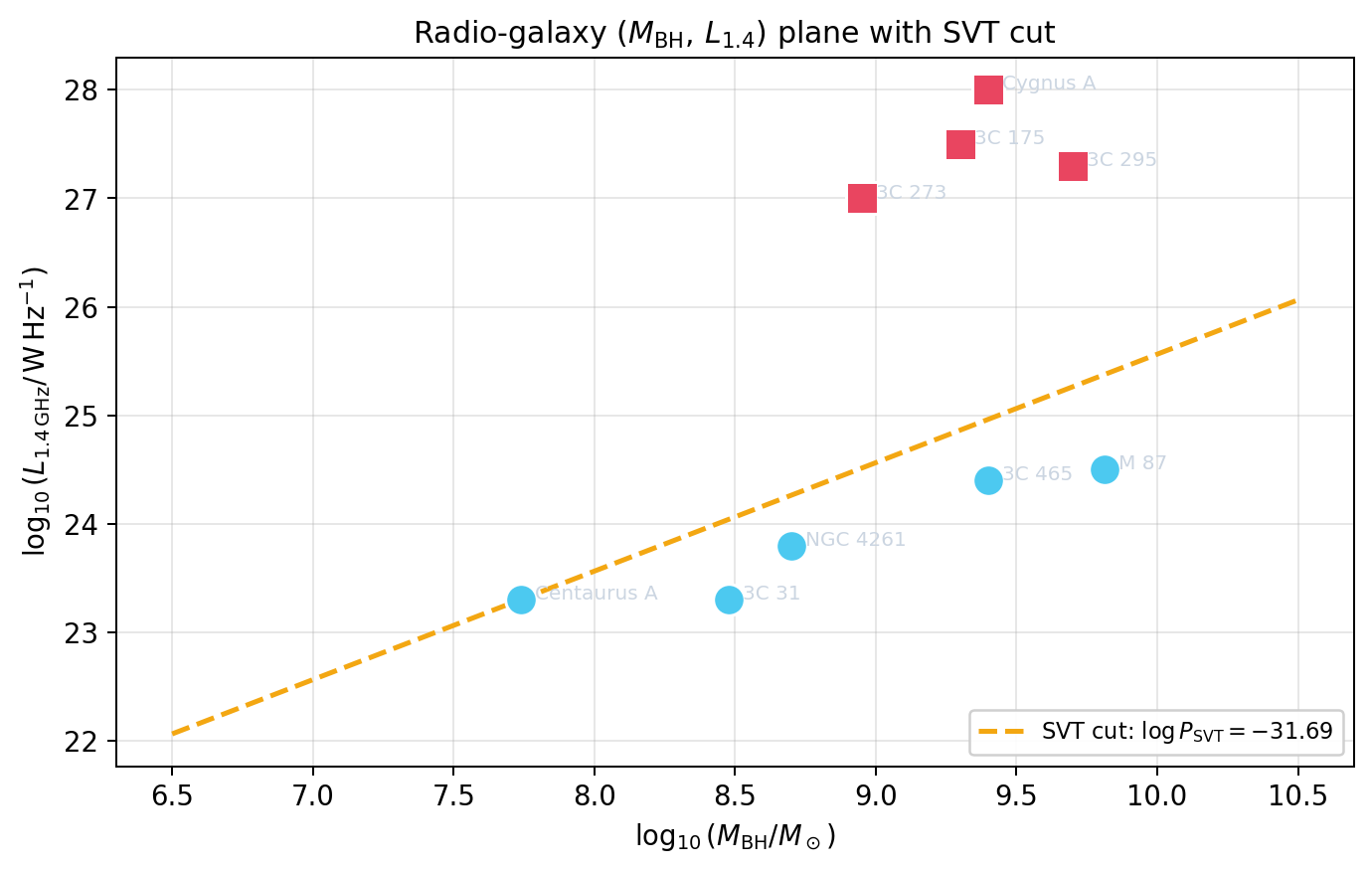

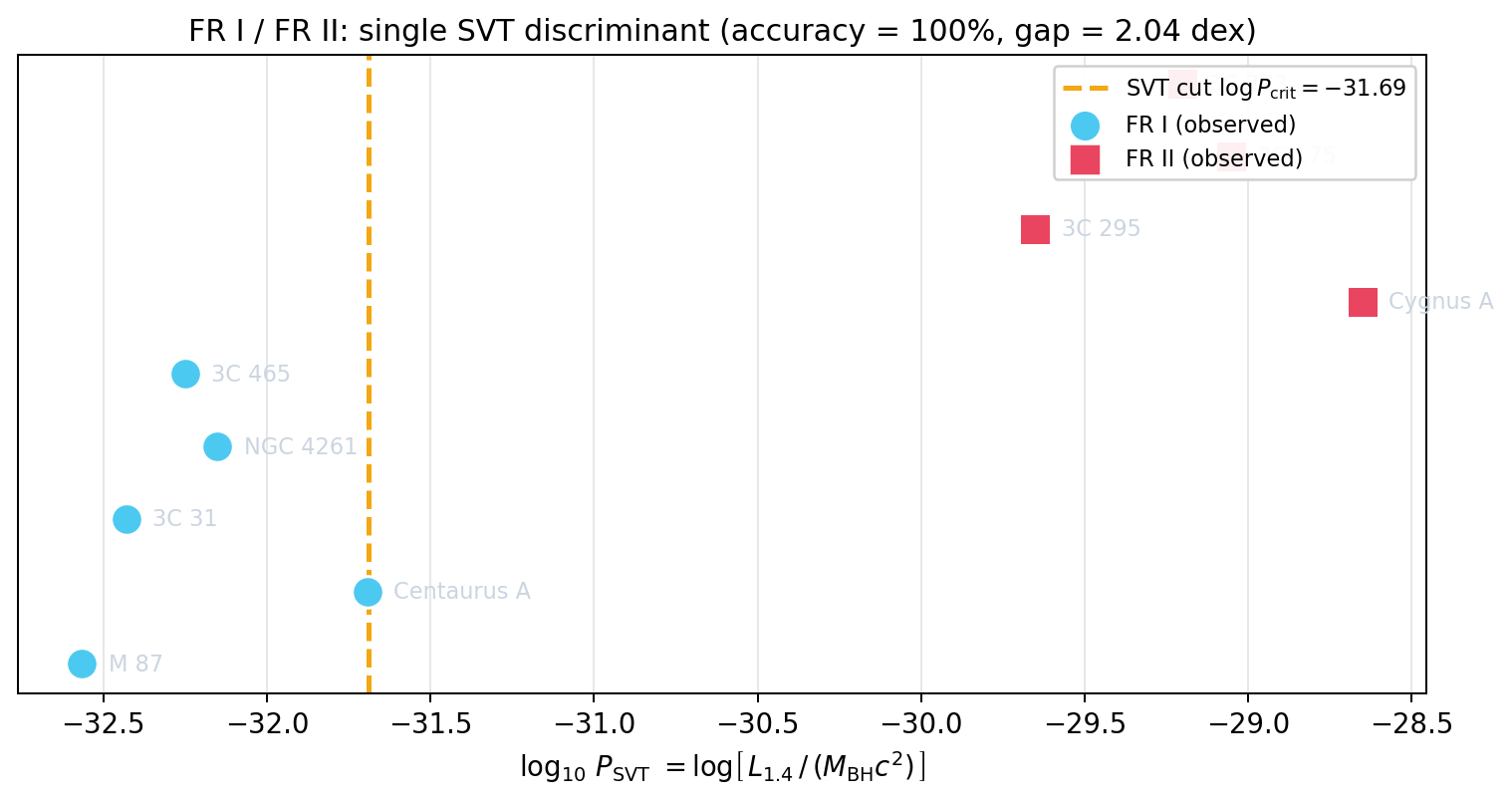

Plots

stdout tail

=================== VALIDATION ===================
  SVT discriminant cut : log P_crit = -31.69
  M 87            log P = -32.57  truth=FR1  pred=FR1 -> correct
  Centaurus A     log P = -31.69  truth=FR1  pred=FR1 -> correct
  3C 31           log P = -32.43  truth=FR1  pred=FR1 -> correct
  NGC 4261        log P = -32.15  truth=FR1  pred=FR1 -> correct
  3C 465          log P = -32.25  truth=FR1  pred=FR1 -> correct
  Cygnus A        log P = -28.65  truth=FR2  pred=FR2 -> correct
  3C 295          log P = -29.65  truth=FR2  pred=FR2 -> correct
  3C 175          log P = -29.05  truth=FR2  pred=FR2 -> correct
  3C 273          log P = -29.20  truth=FR2  pred=FR2 -> correct
  Classification success : 100%  (need >= 80%)  -> PASS
  Gap FR1-FR2 in log P  : 2.04 dex  (>= 1.0)  -> PASS
  Owen-Ledlow slope fit : 0.65  vs expected 1.3 +/- 0.2  (diagnostic only)
  Overall             : PASS

  SVT Prediction: jet stays coherent (FR II) when
  L_1.4 / (M_BH c^2) > P_crit; below, Kelvin-wave cascade -> FR I.
==================================================
