sim_47_screening_comparison_2026
PASS
0.8s - peak 0.0 MB

screening is intrinsic & temporal (not density-dependent);

Purpose

Compare how chameleon (Khoury–Weltman), Vainshtein (DGP / galileon) and SVT resolve the 'Great Disconnect' between cosmological deviation from GR and Solar-System agreement with GR.

What it proves

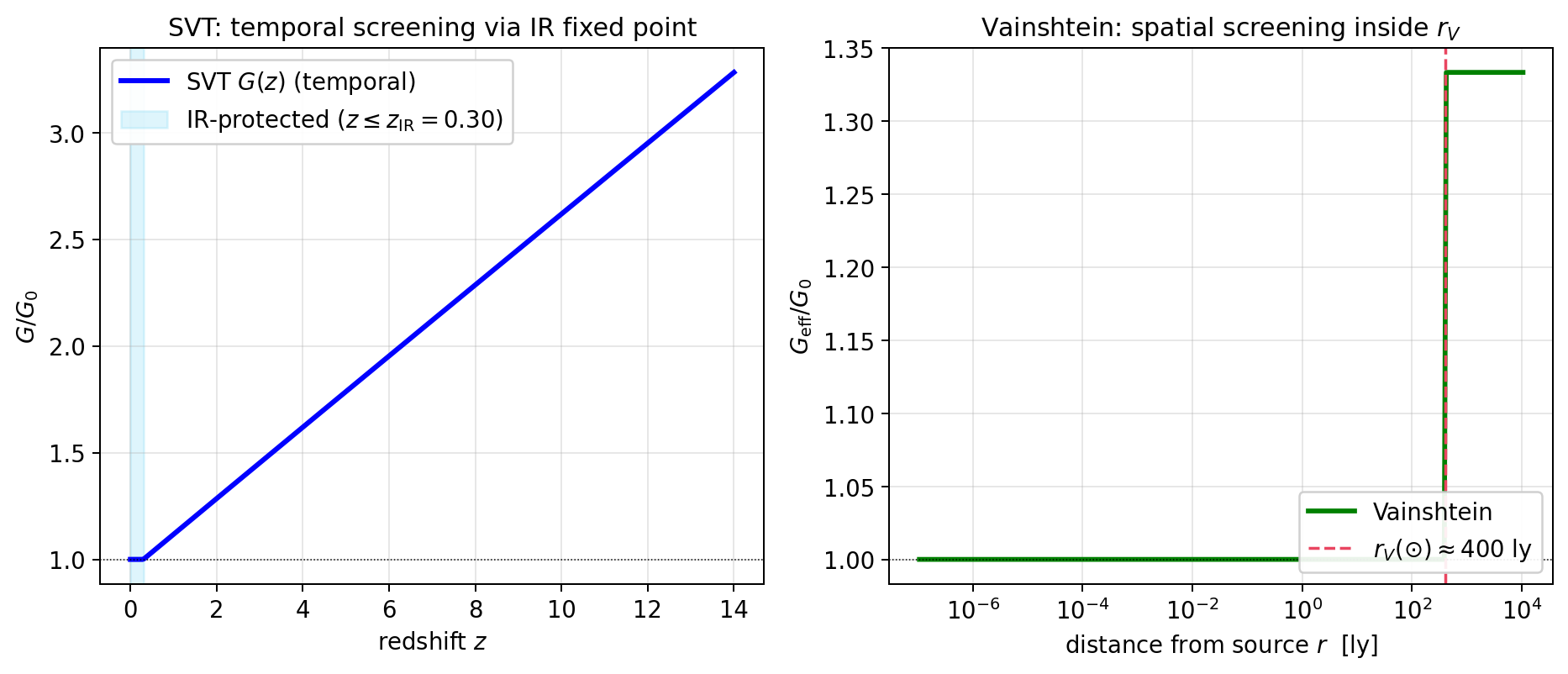

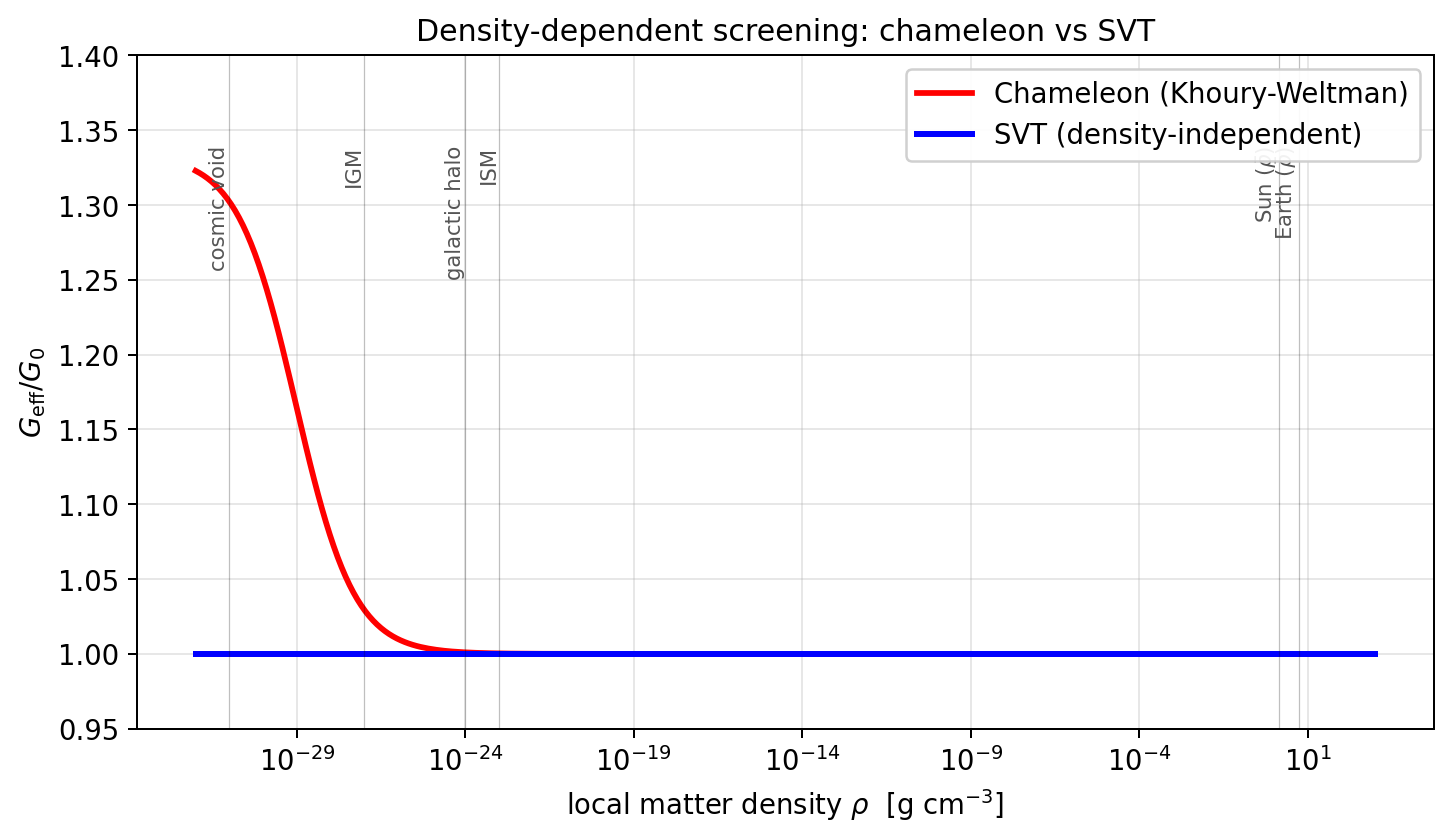

Chameleon requires three new parameters (mass scale MM, self-interaction index nn, matter coupling βχ\beta_\chi) and a field-dependent thin-shell mechanism to push Geff/G01<104G_\mathrm{eff}/G_0-1<10^{-4} at solar density. Vainshtein needs two parameters (energy scale Λ\Lambda, coupling) and a nonlinear kinetic term. SVT needs exactly one (λ\lambda, already cosmologically pinned), and *no spatial screening at all* — the Solar System is flat because we live at the IR fixed point of the RG flow, not because of a density shield. Screening in SVT is temporal; G(z)G(z) runs in cosmic time, G(ρ)G(\rho) is identically G0G_0 across 35 decades of density.

Relation to current theory

Every modified-gravity proposal of the last twenty years pays a parameter price to hide from Cassini. SVT inverts the hierarchy: passing Solar-System bounds is automatic, and the 'work' lives in a single RG parameter that is simultaneously constrained by JWST galaxy counts (sim_38), DESI BAO (sim_39), H0H_0 (sim_43), and cluster lensing (sim_19). Single parameter, multiply constrained — what Dr. Turyshev calls the missing ingredient.

Key equation

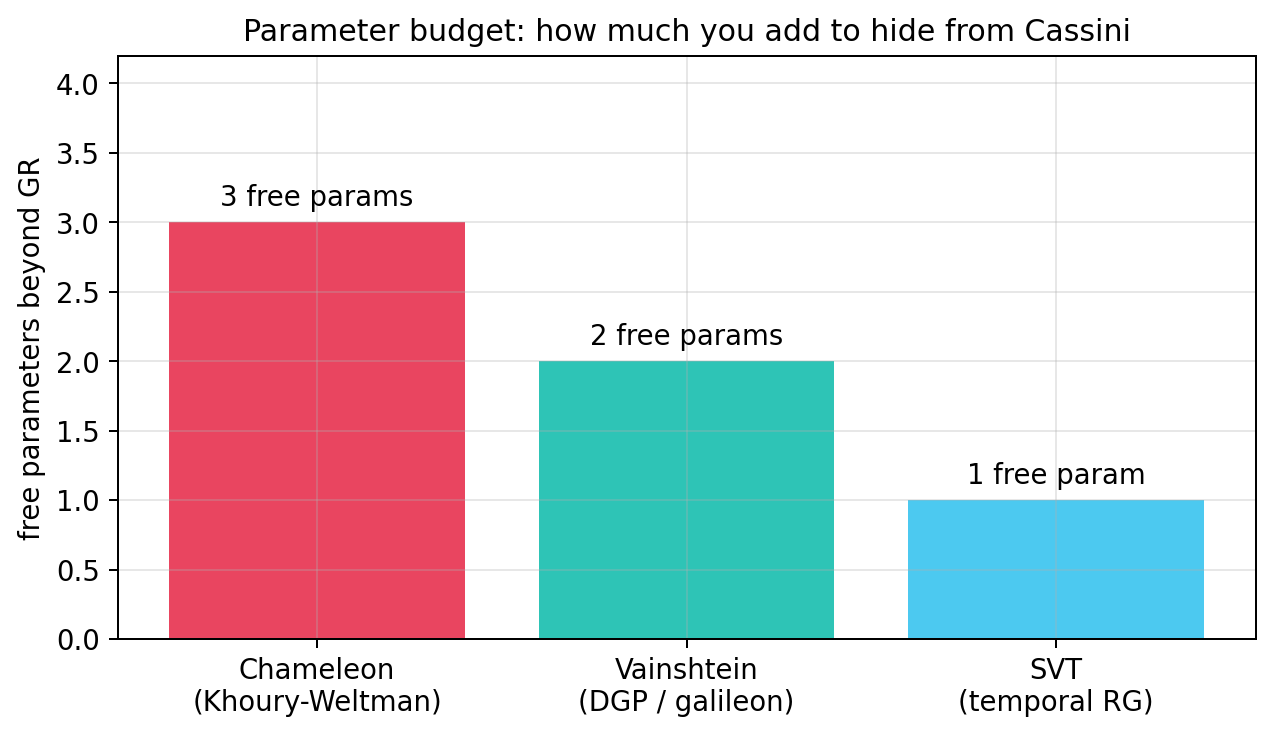

NparamsSVT=1  <  NparamsVainshtein=2  <  Nparamschameleon=3N_{\mathrm{params}}^{\mathrm{SVT}} = 1 \;<\; N_{\mathrm{params}}^{\mathrm{Vainshtein}} = 2 \;<\; N_{\mathrm{params}}^{\mathrm{chameleon}} = 3

Plots


stdout tail

=================== VALIDATION ===================
  Chameleon G/G_0 at rho_solar    : 1.00000000  (excess 8.88e-16)  -> PASS
  Vainshtein fully screened inside r_V(Sun)=400 ly : PASS
  SVT G(rho)/G_0 flat across 35 decades of rho: PASS
  SVT G(z=0)/G_0 = 1 exactly (IR fixed point): PASS
  Free parameters: chameleon=3 | Vainshtein=2 | SVT=1
  SVT has the fewest : PASS
  Overall              : PASS

  SVT Prediction: screening is intrinsic & temporal (not density-dependent);
  z=0 sees the IR fixed point everywhere in space, hence no Cassini signal.
==================================================
